Outdoor Electrical Cabinet IP66 Weatherproof Enclosure – Gridhaus SZK-A Galvar - Anthracite Grey
Outdoor Electrical Cabinet IP66 Weatherproof Enclosure – Gridhaus SZK-A Galvar

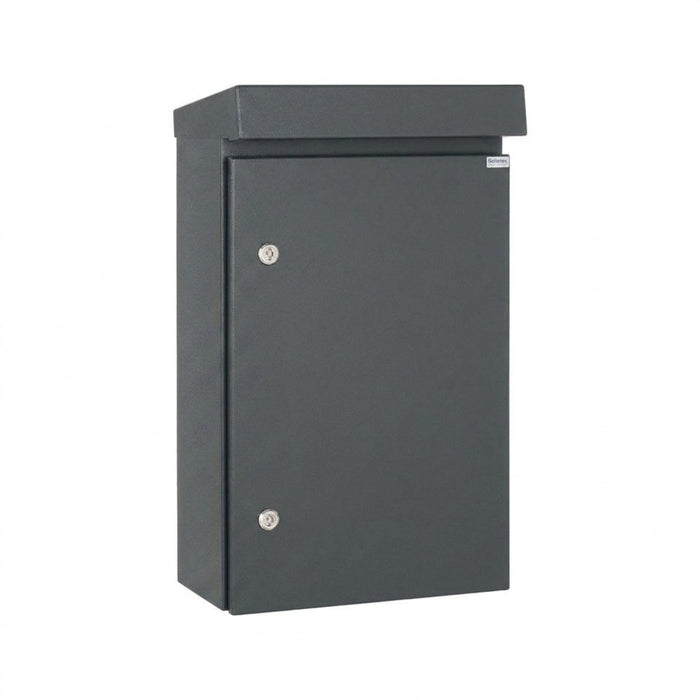

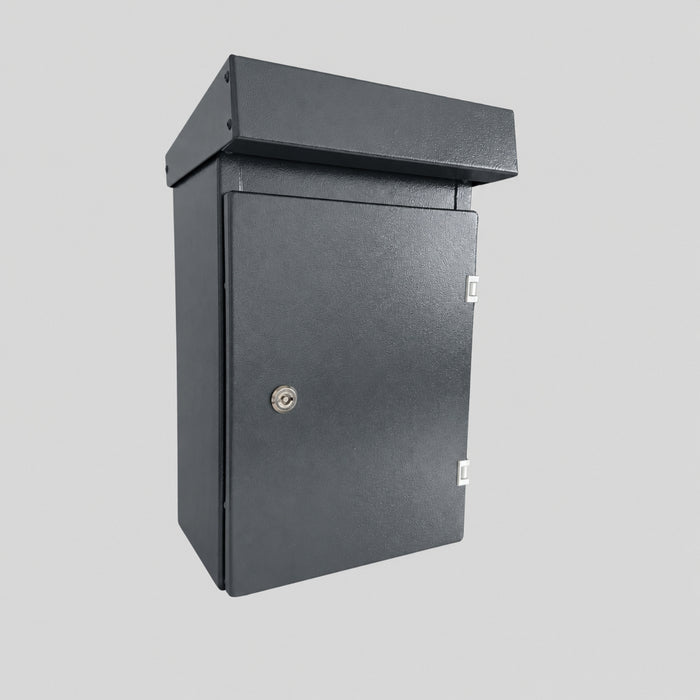

Protect outdoor electrical equipment with the Gridhaus SZK-A Galvar Outdoor Electrical Cabinet, a heavy-duty steel enclosure designed for electrical and industrial installations.
Manufactured from galvanised steel with a polyester powder-coated Anthracite Grey finish, this enclosure provides IP66 ingress protection, IK10 impact resistance and C4 corrosion resistance. Its sloped roof helps rainwater run off the cabinet while reducing the accumulation of dirt and debris.

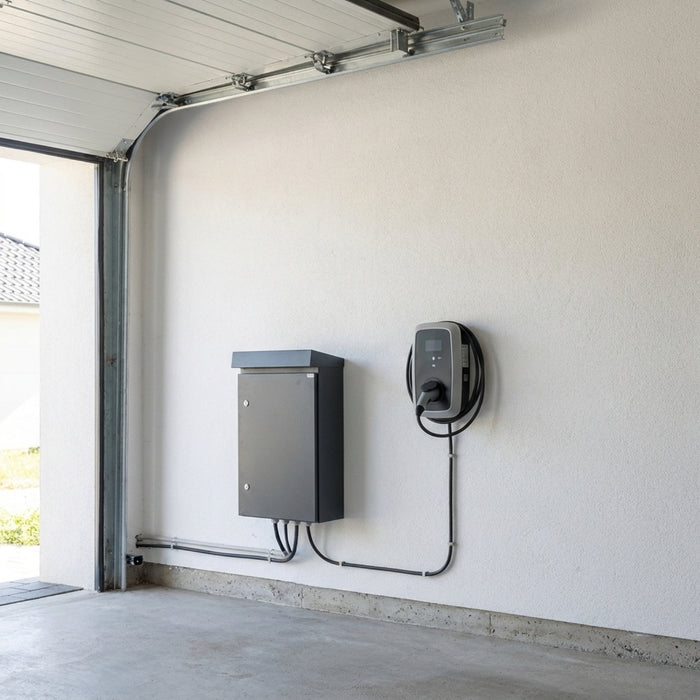

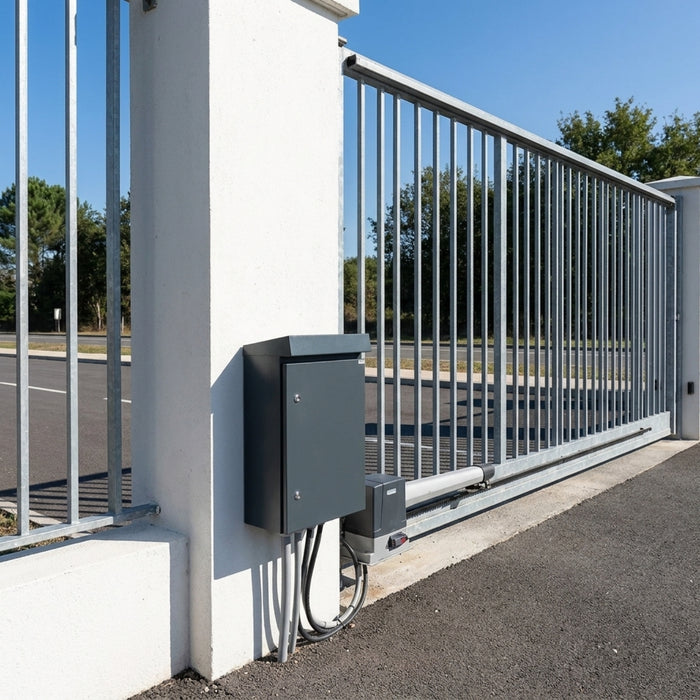

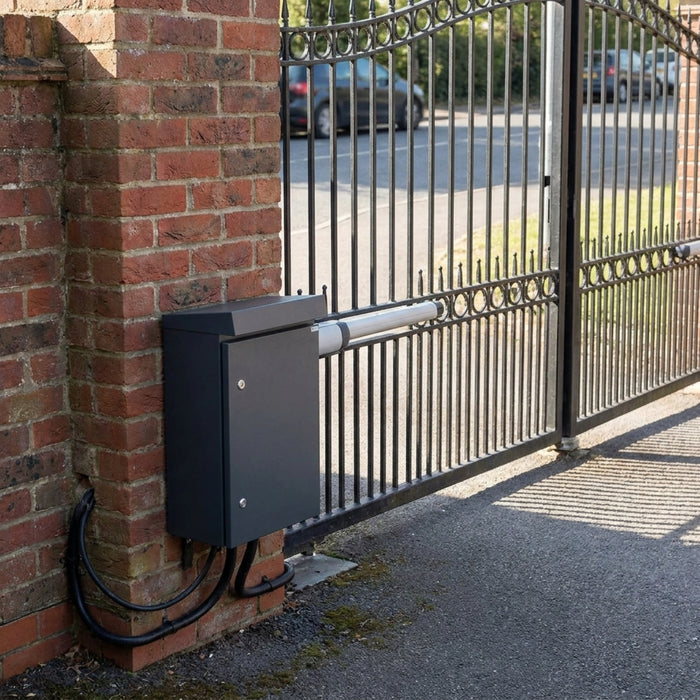

The cabinet can be wall mounted using the supplied mounting brackets. It can also be installed as a free-standing enclosure when used with the optional plinth or base.
Key Features
- IP66-rated enclosure for complete dust protection and resistance to powerful water jets
- IK10 impact resistance
- C4 corrosion-resistance classification
- Galvar galvanised steel construction
- Anthracite Grey polyester powder-coated finish

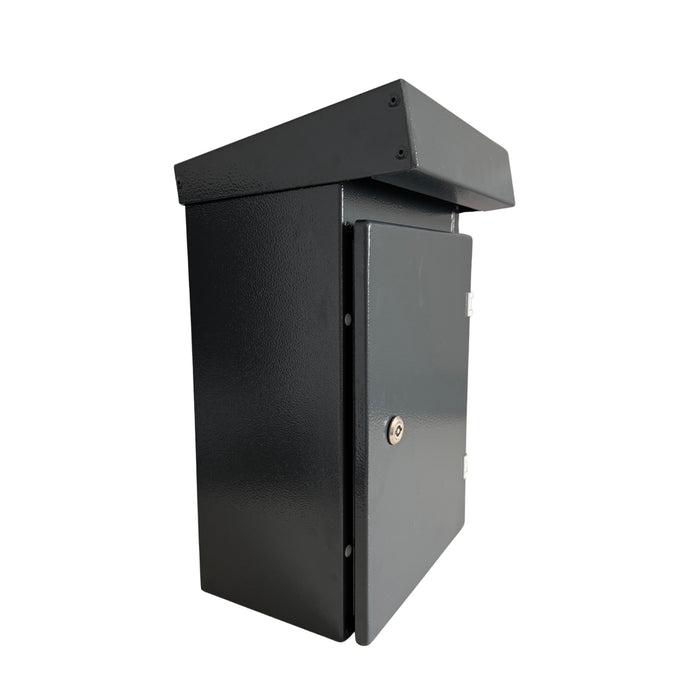

- Sloped roof to improve water drainage and reduce dirt accumulation
- Weld-free construction designed to maintain the integrity of the protective coating

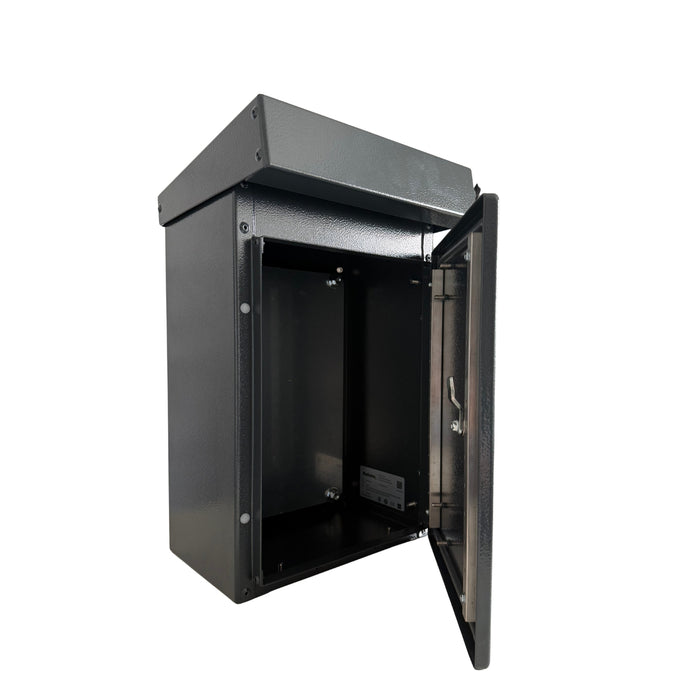

- Reversible hinged door opening to 105°

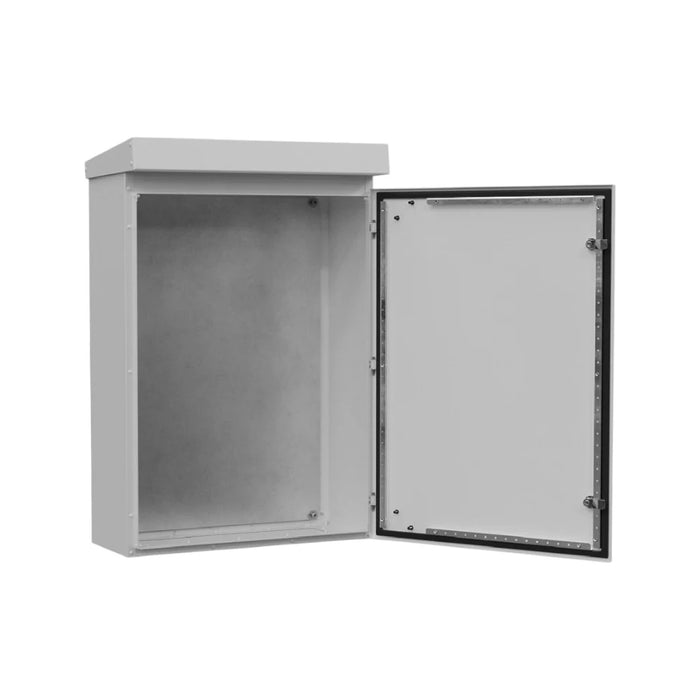

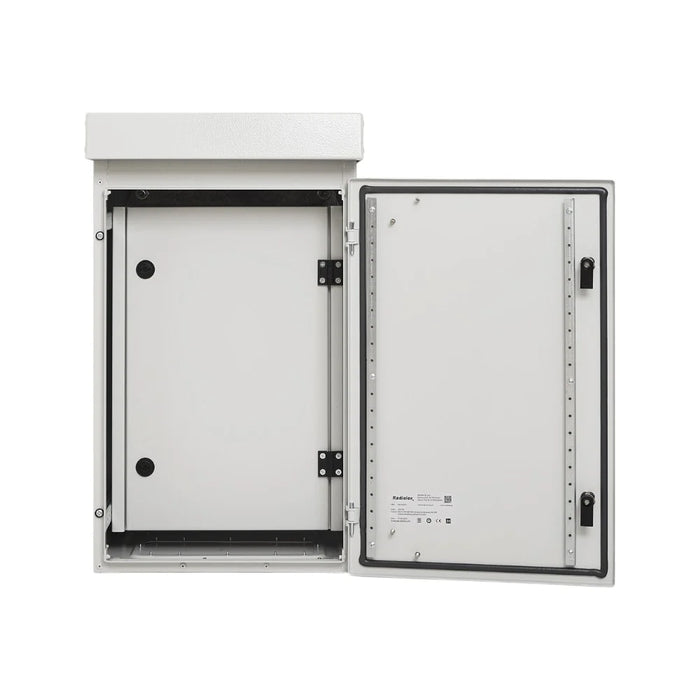

- Internal reinforcing frame for mounting equipment and accessories

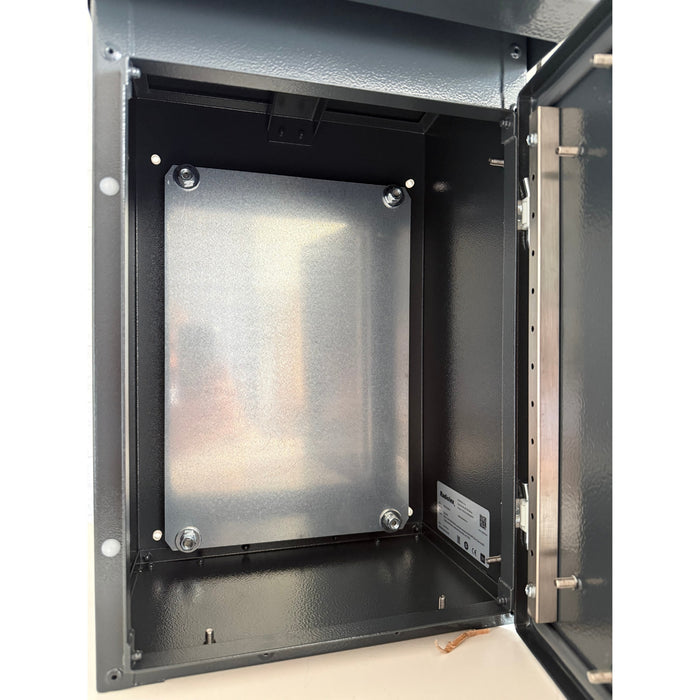

- Supplied with a 3 mm galvanised steel mounting plate

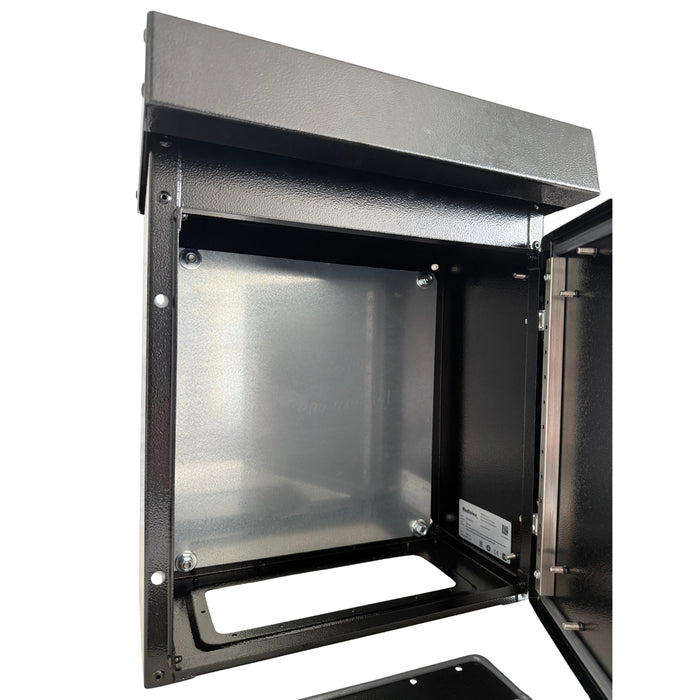

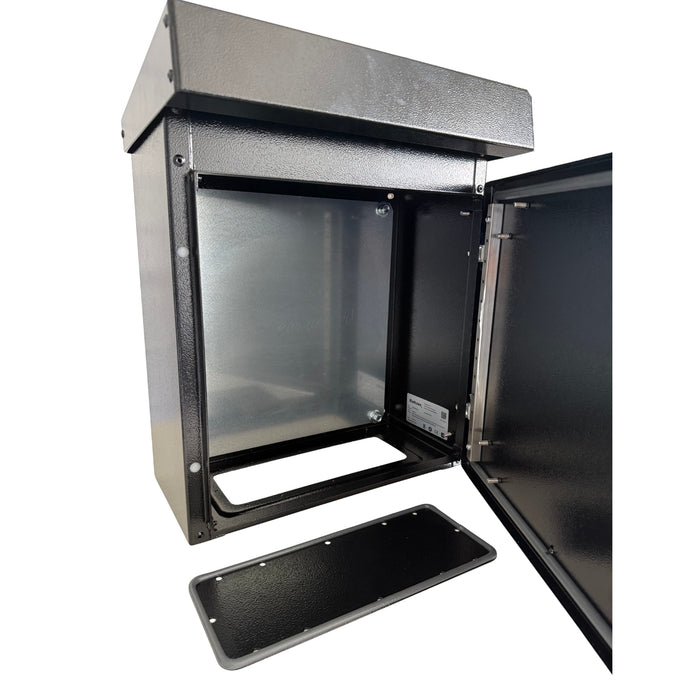

- Gland plate opening positioned in the base
- Gland plate opening size varies according to cabinet width
- Earthing studs fitted to both the cabinet body and door
- Wall-mounting brackets included
- Optional plinth available for floor or free-standing installation
- Suitable operating temperature range of -40°C to +80°C
- Five-year extended warranty

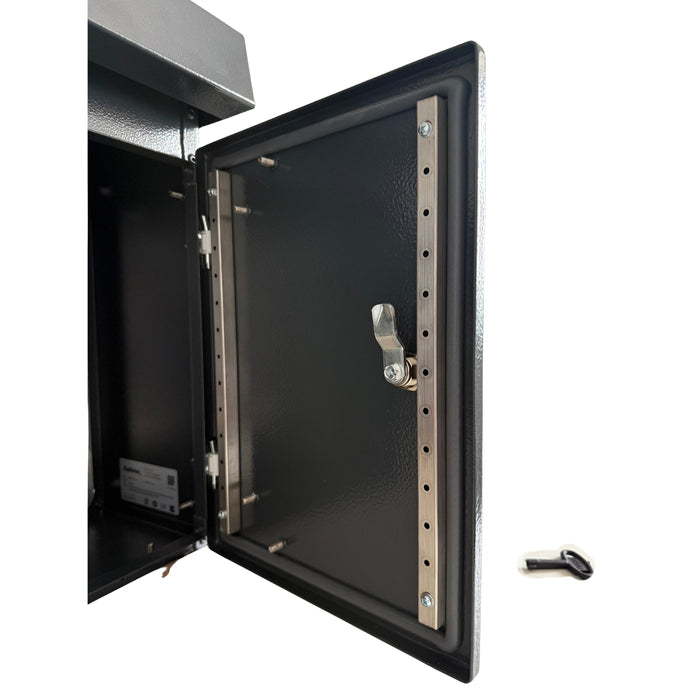

Lock Configuration
The enclosure is supplied with D5 lock fittings:
- One lock for enclosures up to 500 mm in height
- Two locks for enclosures over 500 mm in height
Selectable Size Options
- 300 × 200 × 150 mm
- 400 × 300 × 210 mm
- 500 × 400 × 210 mm
- 400 × 400 × 210 mm
- 500 × 400 × 250 mm
- 600 × 600 × 250 mm
- 700 × 500 × 250 mm
Please check the selected size carefully before ordering. The supplier’s full technical table uses a Height × Width × Depth format.
Mounting and Installation
Wall-mounting brackets and a 3 mm galvanised steel internal mounting plate are included.
A plinth or base is not listed as standard equipment and is required if the cabinet is to be installed as a free-standing or floor-mounted enclosure. Electrical equipment, internal accessories, cable glands and other installation components are not stated as included.
Installation should be completed by a suitably qualified professional according to the intended electrical or industrial application.
Customisation and Larger Orders
- Thermal insulation for temperature-sensitive installations
- Custom dimensions
- Pre-punched cut-outs in the door, cabinet body or mounting plate
- Alternative RAL paint colours
Product Information
- Product type: SZK-A
- Installation: Wall mounted or free standing with an optional plinth
- Material: Galvanised steel
- Protection rating: IP66
- Impact rating: IK10
- Corrosion category: C4
- Door opening angle: 105°
- Mounting plate thickness: 3 mm
- Temperature range: -40°C to +80°C
- Finish: Anthracite Grey powder coating
- Warranty: Five-year extended warranty
Custom Orders Welcome
Need a custom size, colour, or other specifications? Contact us for a tailored quote — available for bulk or special orders with flexible options.
