Epsilon-Pillar Through Pillar Parcel Delivery System with Letterbox

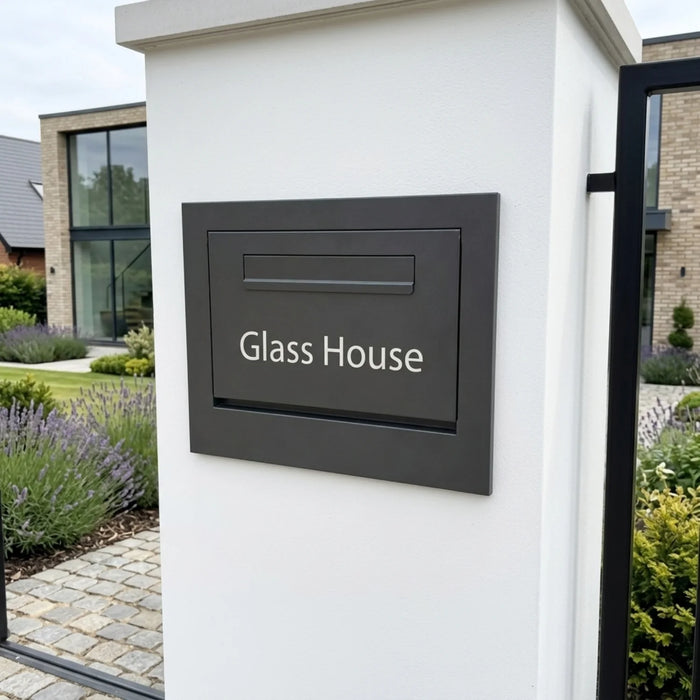

The Epsilon-Pillar Through Pillar Parcel Delivery System with Letterbox is a premium built-in parcel and mail solution designed for substantial brick pillars, stone entrance columns, masonry gate structures, and architectural boundary entrances.

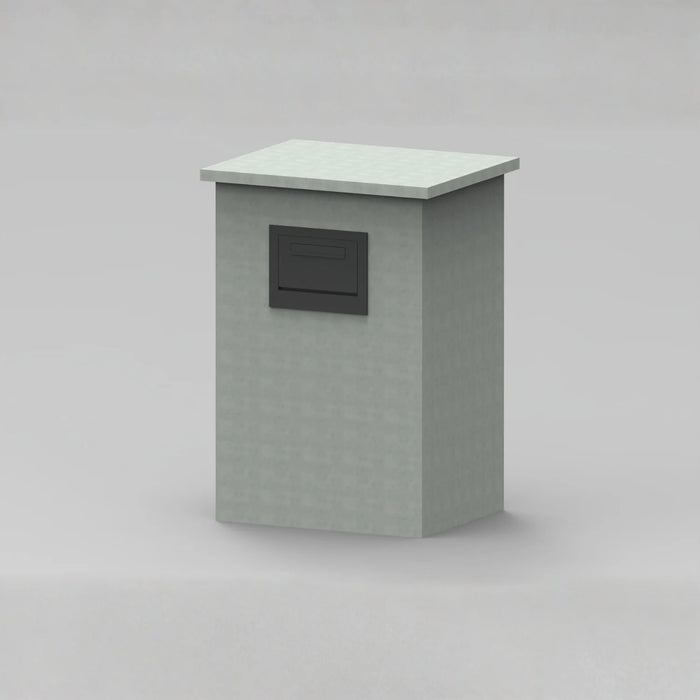

Designed in the UK and manufactured in Europe, the Epsilon-Pillar transforms unused internal pillar space into a concealed parcel storage chamber while maintaining a clean, discreet external appearance. Unlike conventional freestanding parcel boxes, most of the system remains hidden inside the pillar structure, helping preserve the visual integrity of entrance gates, walls, and premium property entrances.

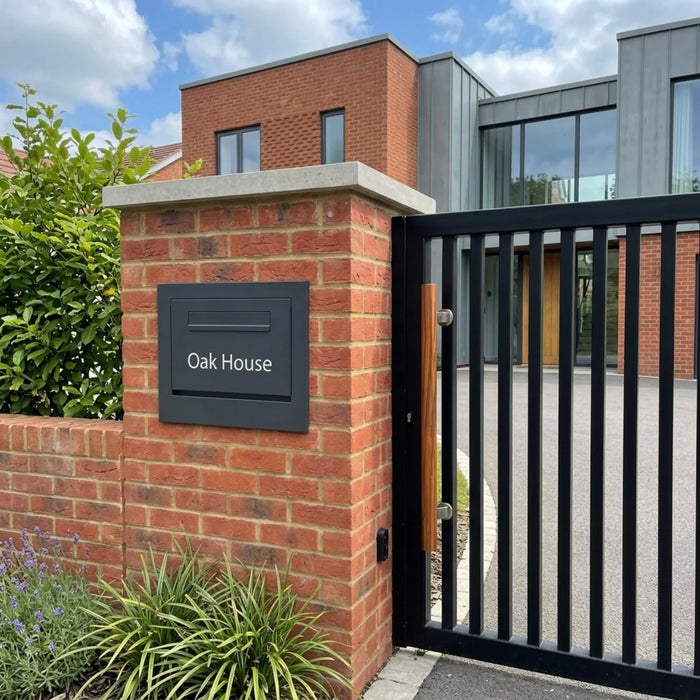

Combining a secure parcel chute with an integrated letterbox, the Epsilon-Pillar provides a practical and architectural alternative to standard parcel boxes and traditional through-wall delivery systems.

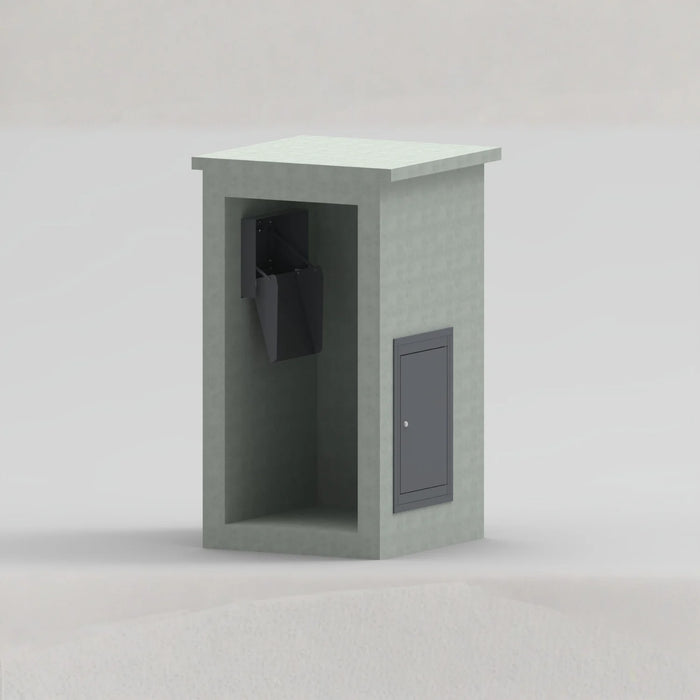

At the centre of the design is a gravity-fed parcel chute mechanism that allows deliveries to be deposited securely into the concealed lower chamber inside the pillar. The enlarged front chute allows larger parcels to be inserted compared with many standard through pillar parcel boxes, while the integrated anti-theft mechanism helps prevent access to stored parcels from the delivery side.

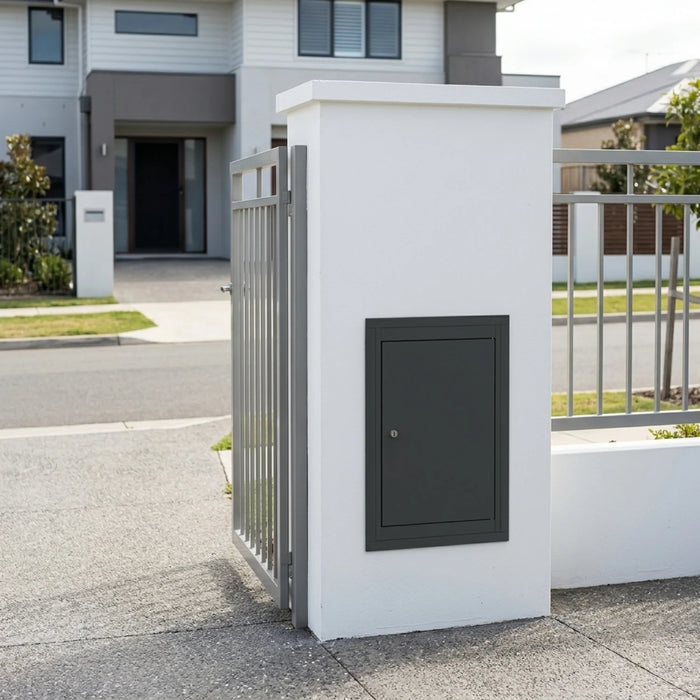

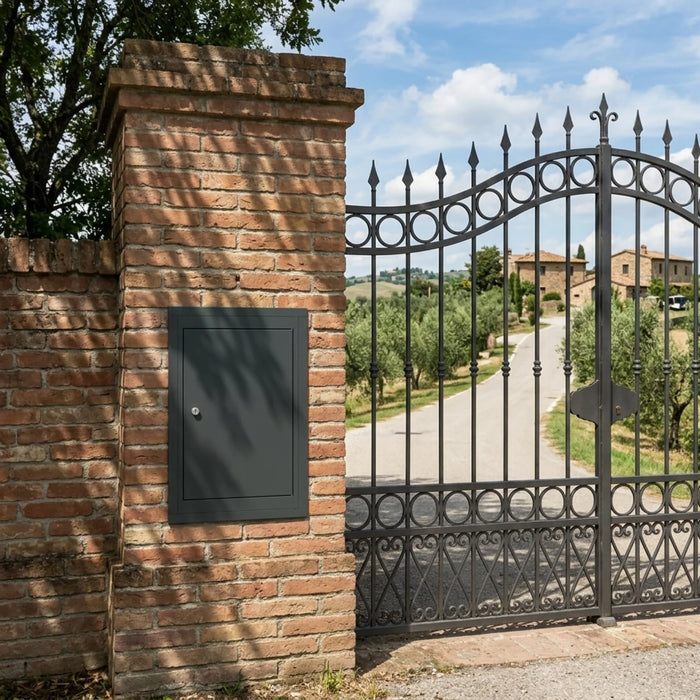

Parcels are retrieved from the internal side of the pillar through a flush rear access door. For enhanced security, the rear retrieval door is fitted with a robust three-point locking system, offering improved rigidity, better resistance against forced opening, more even locking pressure, and a more secure closing feel than many standard single-point parcel box locks.
The front chute assembly and rear retrieval door include integrated weather protection features to help minimise water ingress during normal use. As with any built-in product installed into masonry, correct perimeter sealing is essential during installation, especially around the front chute collar and rear access frame.
The Epsilon-Pillar is suitable for premium residential entrances, gated properties, brick entrance pillars, stone gate columns, rendered masonry pillars, and architectural boundary structures.
We strongly recommend downloading and reviewing the installation instructions prior to purchase. This will allow you to assess suitability for your gate, fence, or wall structure and ensure a smooth installation process.
View our complete range of parcel post boxes here.
Key Features
- Epsilon-Pillar through pillar parcel delivery system with letterbox
- Premium built-in parcel and mail solution for masonry pillars
- Designed in the UK and manufactured in Europe

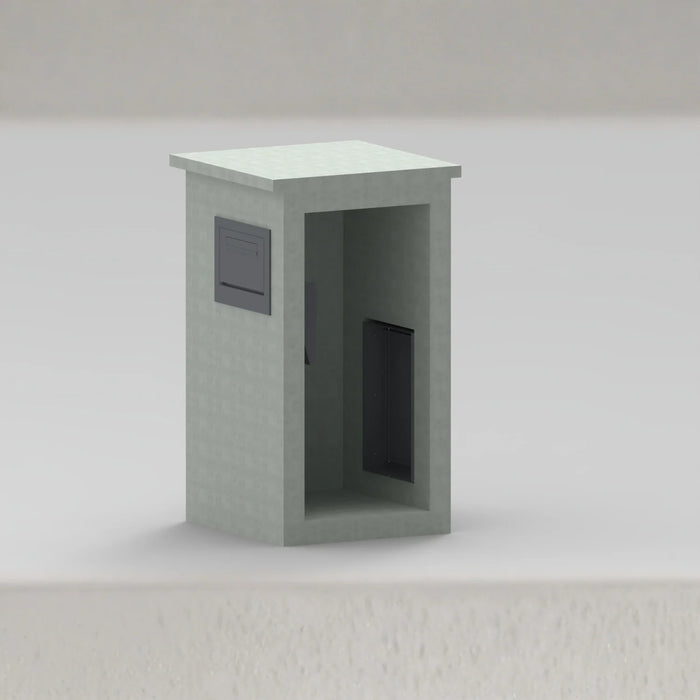

- Concealed parcel storage chamber inside the pillar structure
- Integrated letter flap, so no separate letterbox is required
- Gravity-fed parcel chute system for secure parcel delivery
- Largest usable parcel insertion opening in its category
- Secure internal anti-theft drop mechanism

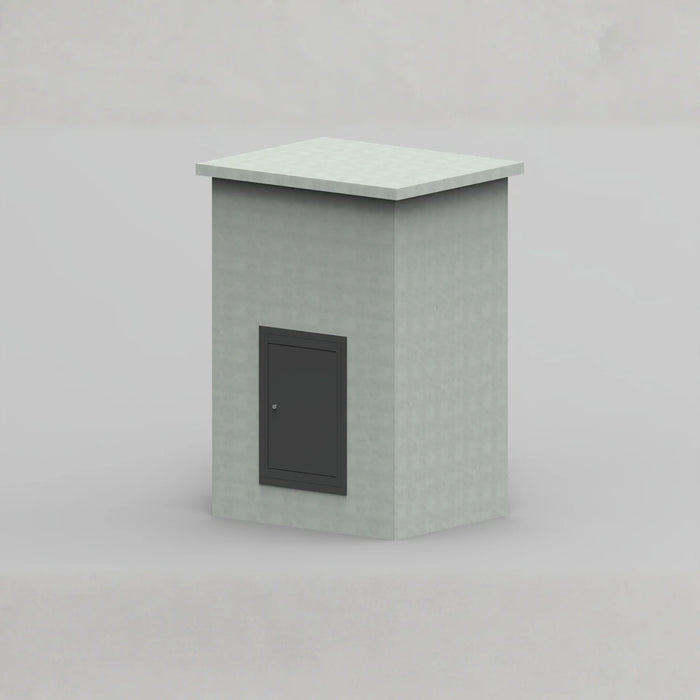

- Rear flush retrieval door for internal-side parcel collection
- Robust three-point locking system for enhanced security
- Integrated trim frame included as standard
- Adjustable installation system for 10–115mm panel thickness
- Front collar with perimeter mounting holes
- Weather protection features to help minimise water ingress
- Suitable for brick pillars, stone columns, masonry gate structures, and premium entrances
- Can accommodate parcels up to 180mm H x 360mm W x 450mm L
- Available in Black Matt and Anthracite RAL 7016 Matt
- 2-year warranty included
Product Specifications
- Product Name: Epsilon-Pillar Through Pillar Parcel Delivery System with Letterbox
- Product Type: Through Pillar Parcel Box with Integrated Letterbox
- Installation Type: Through Pillar / Masonry Column Installation
- Designed In: United Kingdom
- Manufactured In: Europe

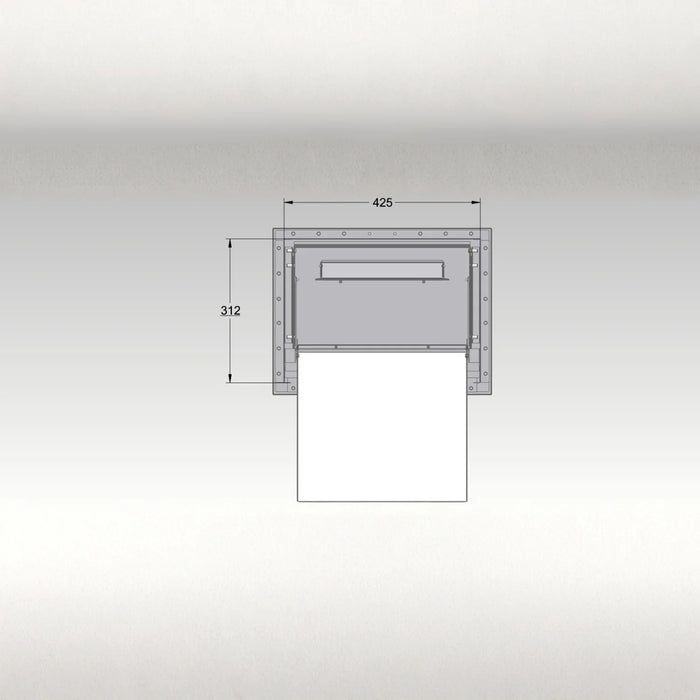

- Front Plate Height: 312mm
- Front Plate Width: 425mm

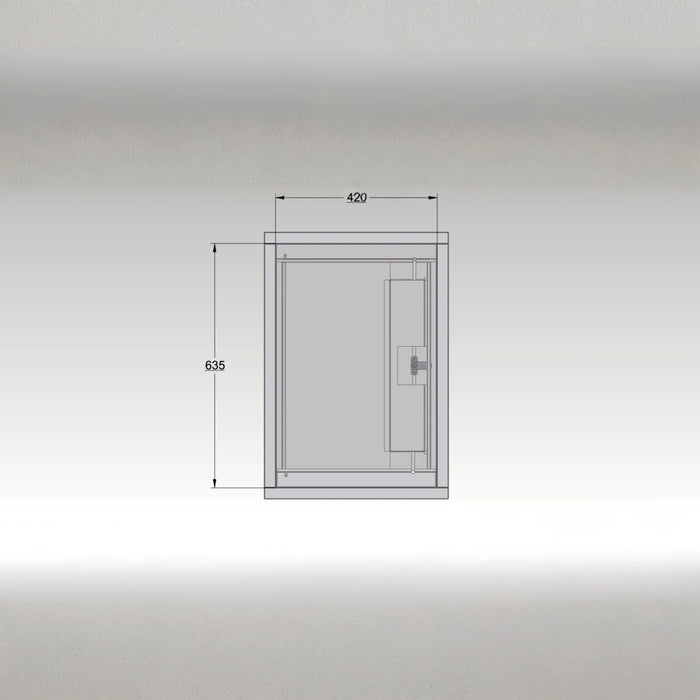

- Rear Door Height: 635mm
- Rear Door Width: 420mm
- Maximum Parcel Size: 180mm H x 360mm W x 450mm L
- Front Chute Required Opening: Approximately 425mm wide x 312mm high
- Rear Retrieval Door Required Opening: Approximately 420mm wide x 635mm high
- Adjustable Installation System: 10–115mm panel thickness
- Locking System: Three-point locking rear retrieval door
- Mail Delivery: Integrated letter flap
- Anti-Theft Feature: Internal anti-theft drop mechanism
- Finishes Available: Black Matt, Anthracite RAL 7016 Matt
- Warranty: 2 years
Installation Guidance
- Designed for deep masonry pillars and architectural entrance structures

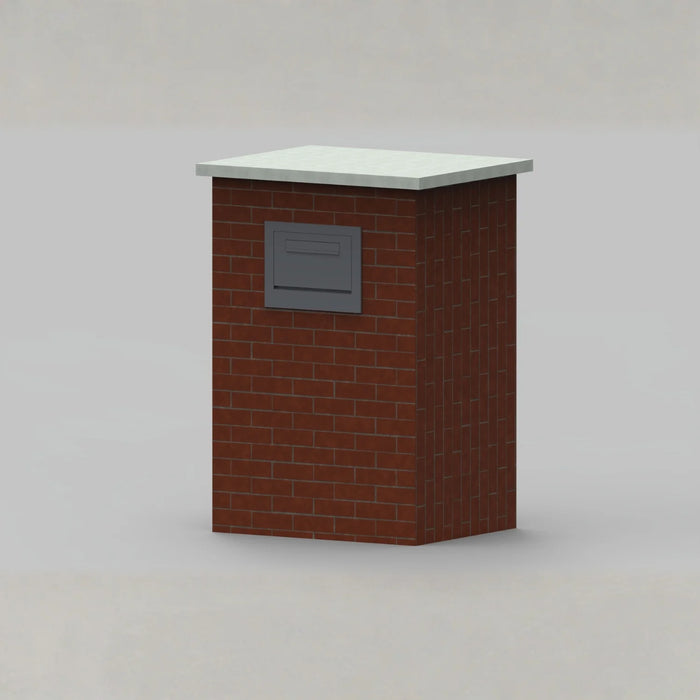

- Suitable for brick entrance pillars, stone gate columns, rendered masonry pillars, and gated residential properties
- Confirm structural openings with your installer, builder, or architect before purchase
- Correct perimeter sealing is essential around the front chute collar and rear access frame
- Standard UK brick guidance: 215mm x 102.5mm x 65mm, based on 10mm mortar joints
